Freeze dryer | Pilot plants

For applications in the field of research and development, as well as small-scale production

Pilotgefriertrockner

Freeze dryers of this series are designed for the laboratory or product development. Depending on the size of the unit, the free-standing units have an ice capacity of 5 to 40 kg and a footprint of up to 2.7 m². These units are equipped as standard with a vacuum valve for regulating the vacuum and a separating valve between the drying chamber and the condenser. In relation to the footprint, these units are characterised by a compact design. The cladding is made entirely of stainless steel and is therefore resistant to all commercially available disinfectants.

Overview freeze dryer

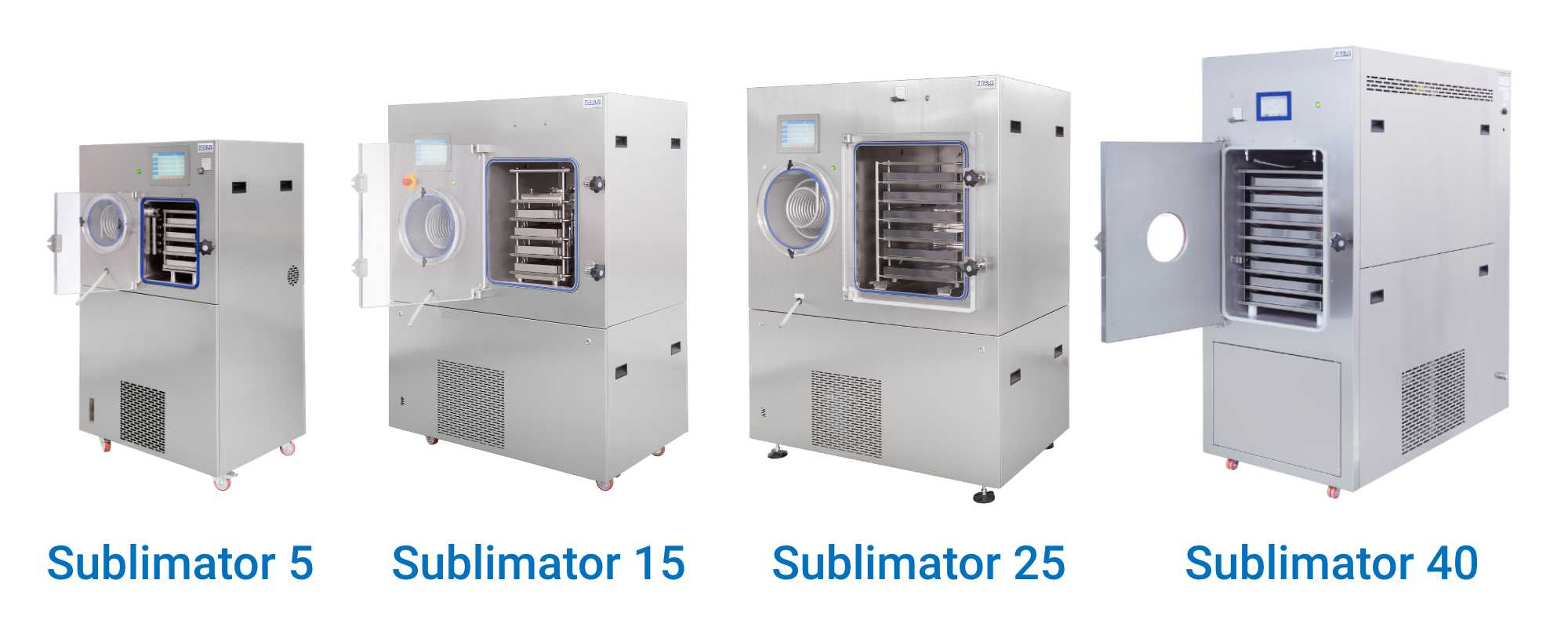

Sublimator	5	15	25	40
Footprint up to max. [m²]	0,45	1,12	2,02	2,70
Ice condenser capacity	4 kg / 24h max. 5 kg	10 kg / 24h max. 10kg	20 kg / 24h max. 25kg	30 kg / 24h max. 40kg
External dimensions (WxHxD) [mm] (Standard version)	970 x 1700 x 750	1300 x 1850 x 850	1500 x 1920 x 850	980 x 1920 x 1650
Footprint temp. at -50°C Version	-40…+60 °C
Footprint temp. at -80°C Version	-60…+60 °C

Footprint configuration for tray drying

Sublimator	5	15	25	40
Footprint – tray drying [mm]	200 x 450	320 x 500	420 x 600	450 x 750
Footprint configuration (number+radiation panel) / footprint [m²] Footprint spacing [mm]	2+1 / 0,18m² 130mm	5+1 / 0,8m² 75mm	3+1 / 0,76m² 180mm	5+1 / 1,69m² 100mm
	3+1 / 0,27m² 90mm	6+1 / 0,96m² 60mm	4+1 / 1,01m² 130mm	6+1 / 2,03m² 80mm
	4+1 / 0,36m² 58mm	7+1 / 1,12m² 50mm	5+1 / 1,26m² 100mm	7+1 / 2,36m² 67mm
	5+1 / 0,45m² 44mm		6+1 / 1,51m² 80mm	8+1 / 2,70m² 57mm
			7+1 / 1,76m² 65mm
			8+1 / 2,02m² 55mm

Footprint configuration for vial drying

Sublimator	5	15	25	40
Footprint – Vial drying [mm]	200 x 450	250 x 500	350 x 600	450 x 750
Footprint configuration (number+radiation panel) / footprint [m²] Footprint spacing [mm]	2+1 / 0,18m² 130mm	3+1 / 0,38m² 130mm	3+1 / 0,63m² 160mm	4+1 / 1,35m² 125mm
	3+1 / 0,27m² 90mm	4+1 / 0,5m² 95mm	4+1 / 0,84m² 120mm	5+1 / 1,69m² 100mm
	4+1/ 0,36m² 58mm	5+1 / 0,63m² 75mm	5+1 / 1,05m² 100mm	6+1 / 2,03m² 80mm
		6+1 / 0,75m² 60mm	6+1 / 1,26m² 80mm	7+1 / 2,36m² 67mm
			7+1 / 1,47m² 65mm

Features / options of this series:

CIP (cleaning in place)
Spray nozzles mounted in the chamber and condenser ensure intensive cleaning.

SIP (sterilization in place) (from sublimator 15)
Chamber and condenser are designed as pressure vessels, so that steam sterilisation in place is possible. Alternatively, H2O2 is also possible.

GMP-FDA compliant
Taking the guidelines into account, the systems meet the highest demands for production in compliance with cleanroom standards. The exact requirements are defined and implemented together with you.

Liquid-tempered shelves made of stainless steel
For an even and rapid temperature distribution, the shelves are flooded with brine oil.

Closure device for vials
The shelves can be automatically moved together after the drying process to seal vials under vacuum conditions. The optimal preservation.

Air or water-cooled refrigeration system
Depending on the installation site, we can design the refrigeration systems to be air-cooled or water-cooled.

Wall mounting (gas-tight)
The front of the unit is installed gas-tight in a wall. This allows the service area to be separated from the production area.

Oil-sealed and oil-free vacuum pump
If organic solvents are present, it may be useful to use an oil-free vacuum pump.

Insulator- Glovebox coupling
The units can be connected to insulators via a connecting flange. Special designs are also possible.

Versch. Control systems, SCADA visualisation
We offer a variety of different visualisation and documentation systems.

EX-protection version ATEX,solvent discharge
If explosive gas mixtures are present, the systems can be equipped with explosion protection.
