Autoclaves for laboratory and production with square chamber and vertical door
Floor standing units from 150 to 1,200 liters chamber volume

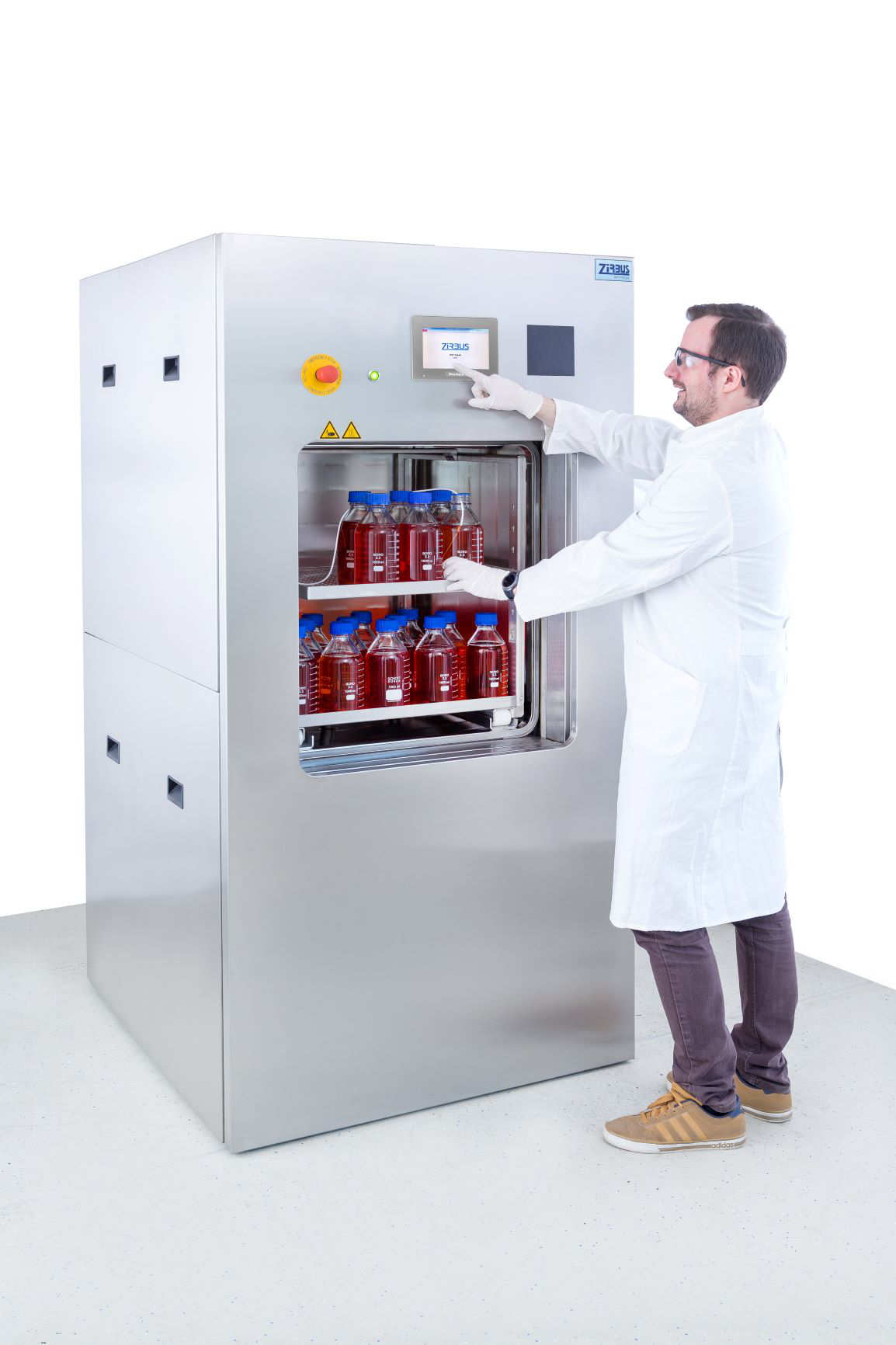

The stand-alone autoclaves with vertical door are powerful, compact and economical to use. Due to the angular chamber shape, large loading capacities can be realized with comparatively small external dimensions. The optimal solution and use of your laboratory space. The autoclave can be individually adapted to the requirements of your sterilization task. Many options are available. Whether single-door or pass-through autoclave with gas-tight partition. We will be happy to work with you to develop the optimum solution for your sterilization task.
The following diagram illustrates the advantages of a square chamber compared to a round chamber unit in terms of loading capacity.
Autoclaves with 450mm chamber width from 150 to 305 liters chamber volume
| Type | HST 4x4x6 | HST 4x6x6 | HST 4x6x9 |
|---|---|---|---|
| Free usable space dimensions (mm) | (W)450 (H)500 (D)670 |
(W)450 (H)700 (D)670 |
(W)450 (H)700 (D)970 |
| Chamber volume (Liter) | 150 | 210 | 305 |
| External dimensions in the single door version (mm) |
(W)800 (H)1950 (D)1100 |
(W)800 (H)1950 (D)1100 |
(W)800 (H)1950 (D)1400 |
Autoclaves with 650mm chamber width from 440 to 849 liters chamber volume
| Typ | HST 6x6x6 | HST 6x6x9 | HST 6x6x12 | HST 6x6x16 | HST 6x6x18 |
|---|---|---|---|---|---|
| Free usable space dimensions (mm) | (W)650 (H)700 (D)670 |
(W)650 (H)700 (D)970 |
(W)650 (H)700 (D)1270 |
(W)650 (H)700 (D)1670 |
(W)650 (H)700 (D)1870 |
| Chamber volume (Liter) | 304 | 440 | 577 | 758 | 849 |
| External dimensions in the single door version (mm) |
(W)980 (H)1950 (D)1100 |
(W)980 (H)1950 (D)1400 |
(W)980 (H)1950 (D)1700 |
(W)980 (H)1950 (D)2100 |
(W)980 (H)1950 (D)2300 |
Autoclaves with 850mm chamber height from 370 to 1,030 liters chamber volume
| Typ | HST 8x6x6 | HST 8x6x9 | HST 8x6x12 | HST 8x6x14 | HST 8x6x16 | HST 8x6x18 |
|---|---|---|---|---|---|---|
| Free usable space dimensions (mm) | (W)650 (H)850 (D)670 |
(W)650 (H)850 (D)970 |
(W)650 (H)850 (D)1270 |
(W)650 (H)850 (D)1470 |
(W)650 (H)850 (D)1670 |
(W)650 (H)850 (D)1870 |
| Chamber volume (Liter) | 370 | 535 | 700 | 812 | 922 | 1.030 |
| External dimensions in the single door version (mm) |
(W)1250 (H)1950 (D)1100 |
(W)1250 (H)1950 (D)1400 |
(W)1250 (H)1950 (D)1700 |
(W)1250 (H)1950 (D)1900 |
(W)1250 (H)1950 (D)2100 |
(W)1250 (H)1950 (D)2300 |
To match the autoclaves exactly to your tasks, the following options are available:
- House steam version, for connection to a central steam supply system
- Intrinsic steam generator mounted in the housing
- Pass-through version with gas-tight separation for safety laboratories and clean rooms
- GMP-compliant design according to DIN 58950 and FDA regulations
- Rapid water recooling via a large-area double jacket. In conjunction with the support pressure control via a sterile air filter, ensures the shortest possible recooling times for liquid media.
- Connection to a house-supplied ring cooling system to save water, heat exchange is via a plate heat exchanger.
- Circulating air fan which further reduces the cooling time. In addition, this offers the possibility of sterilization in the steam-air mixture.
- Hot water sprinkling process (HWBV), for fast and gentle sterilization of liquids in closed vessels.
- Spray cooling, for rapid cooling of liquids in closed vessels.
- Exhaust air filter with condensate activation, for sterilization of infectious goods of risk class S2 and S3. Retention rate of the filter: > 99,5% 0,02µm
- Vacuum pump set with optional water saving device, for safe evacuation of air from the sterile goods ,by means of single-stage or fractionated pre-vacuum. Enables dry removal of the sterile goods at the end of the process.
- Transport and batch trolley for ergonomic loading and unloading.
- Insert baskets and waste sterilization containers with closed bottom and lid, for optimal use of the sterilization chamber
Documentation facilities
- Network-capable digital batch recording and user management system in conjunction with Siemens in accordance with FDA 21 CFR Part 11
- USB stick for storing up to 1,000 batches on a USB stick. The data can be read out on a PC for evaluation.
- Sterilog” documentation software for direct documentation of the sterile process on a PC. Communication takes place via an Ethernet interface.
- Pharmaceutical qualification DQ, IQ and OQ according to DIN 589510; FDS, HDS, SDS
